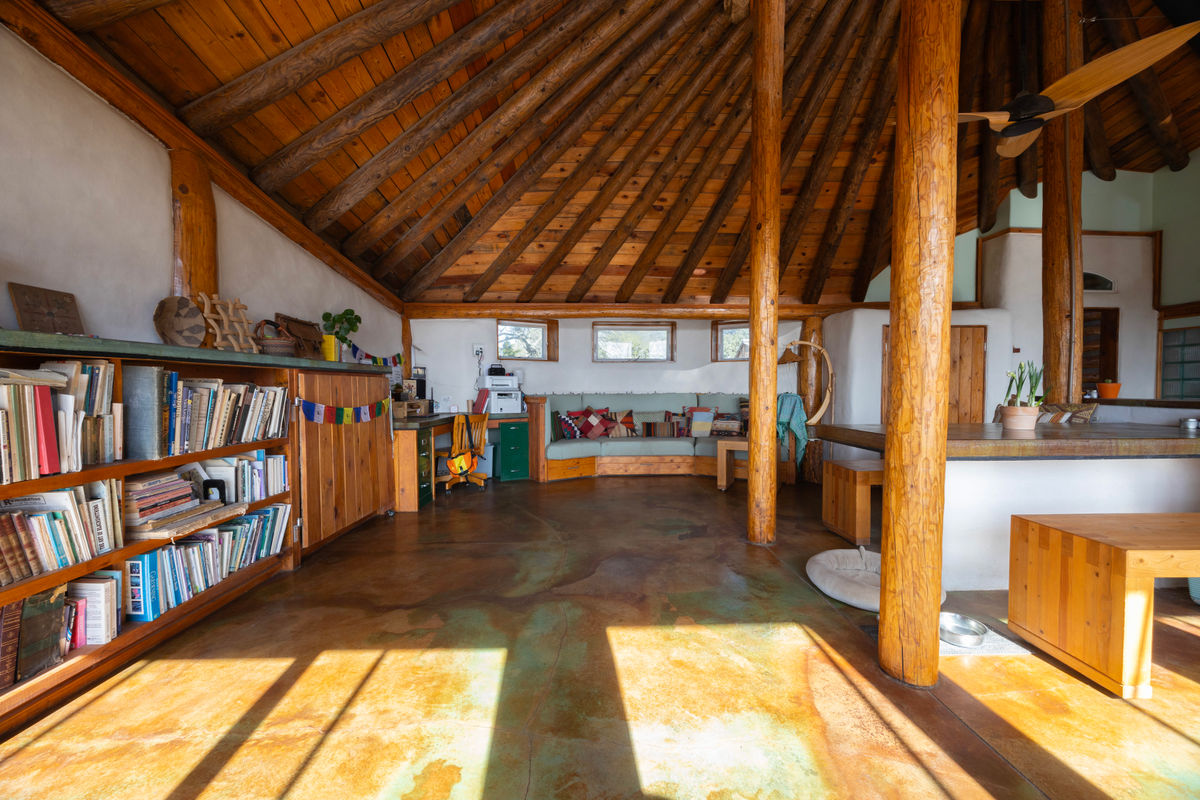

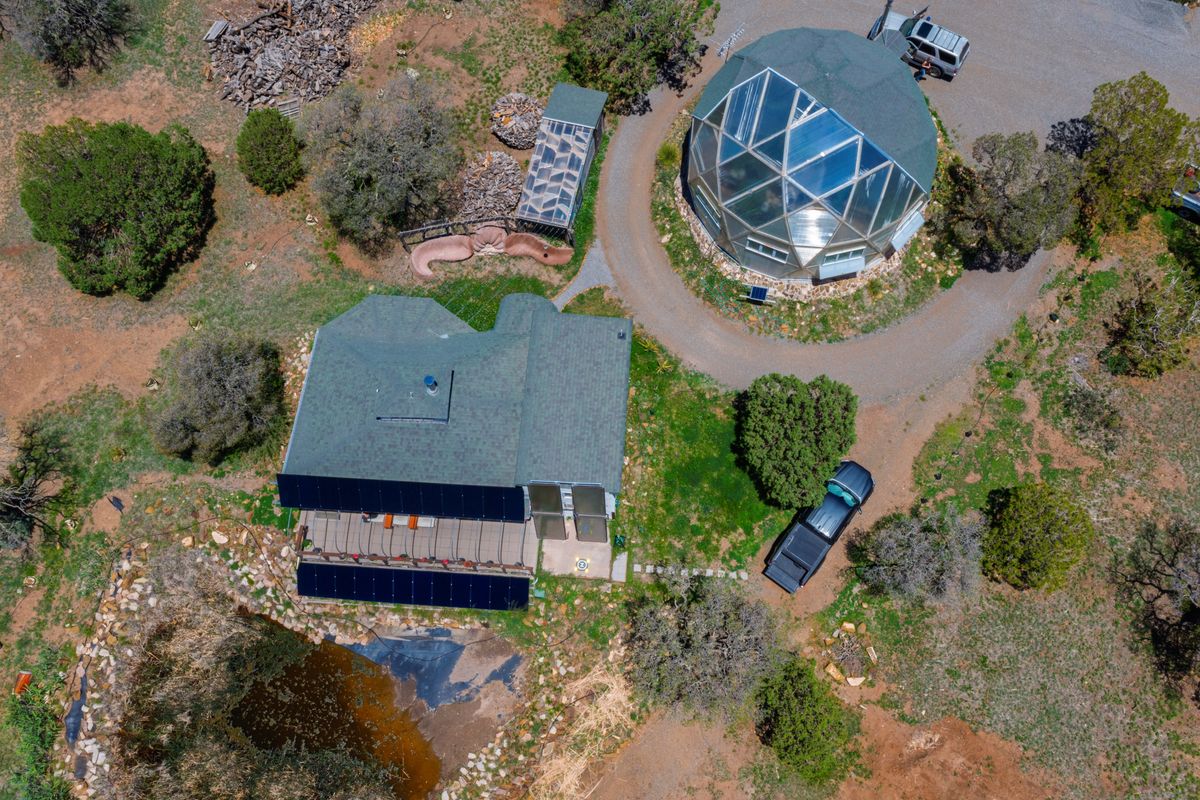

South elevation of home, greenhouse and shop are insulated windows of either insulated glass or triple wall polycarbonate. Home south elevation has floor to ceiling glass at living area which allows winter sunshine to warm extensive interior mass. Calculated overhang limits sun exposure in summer.

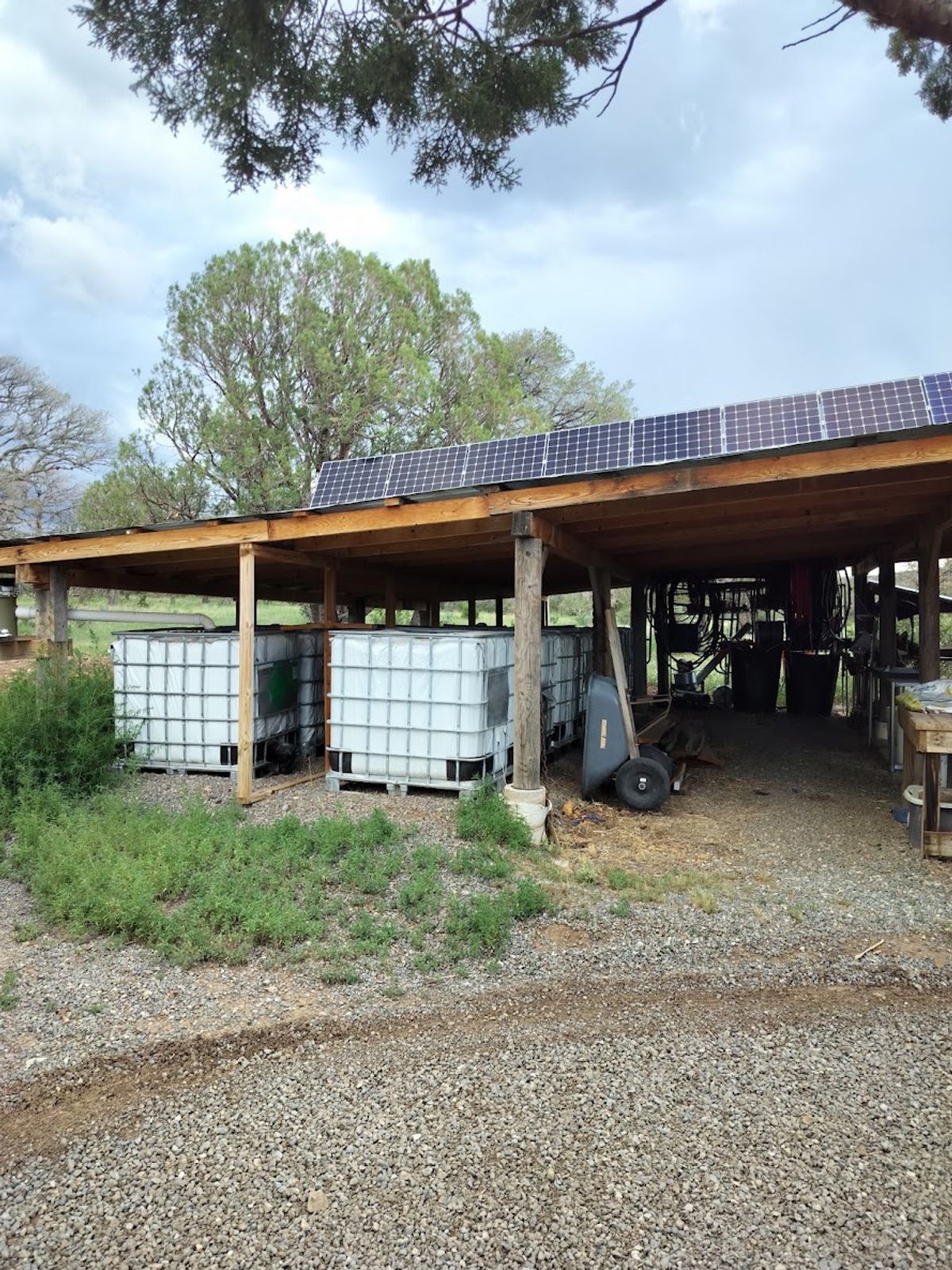

6600 gallons of rainwater storage composed of 24 food grade 275 gallon IBC. These are manifolded to a 1/2 hp pump which supplies rainwater to the greenhouse. System designed to be able to supply domestic water as backup.
House gray water flows to composting worm bio chamber. Underground branched network flows worm processed effluent into 35'x50'x5' wood filled hügelkultur bed under the garden. full diagrams and dimensions available. House and dome black water to newly installed and permitted septic system per State requirements.

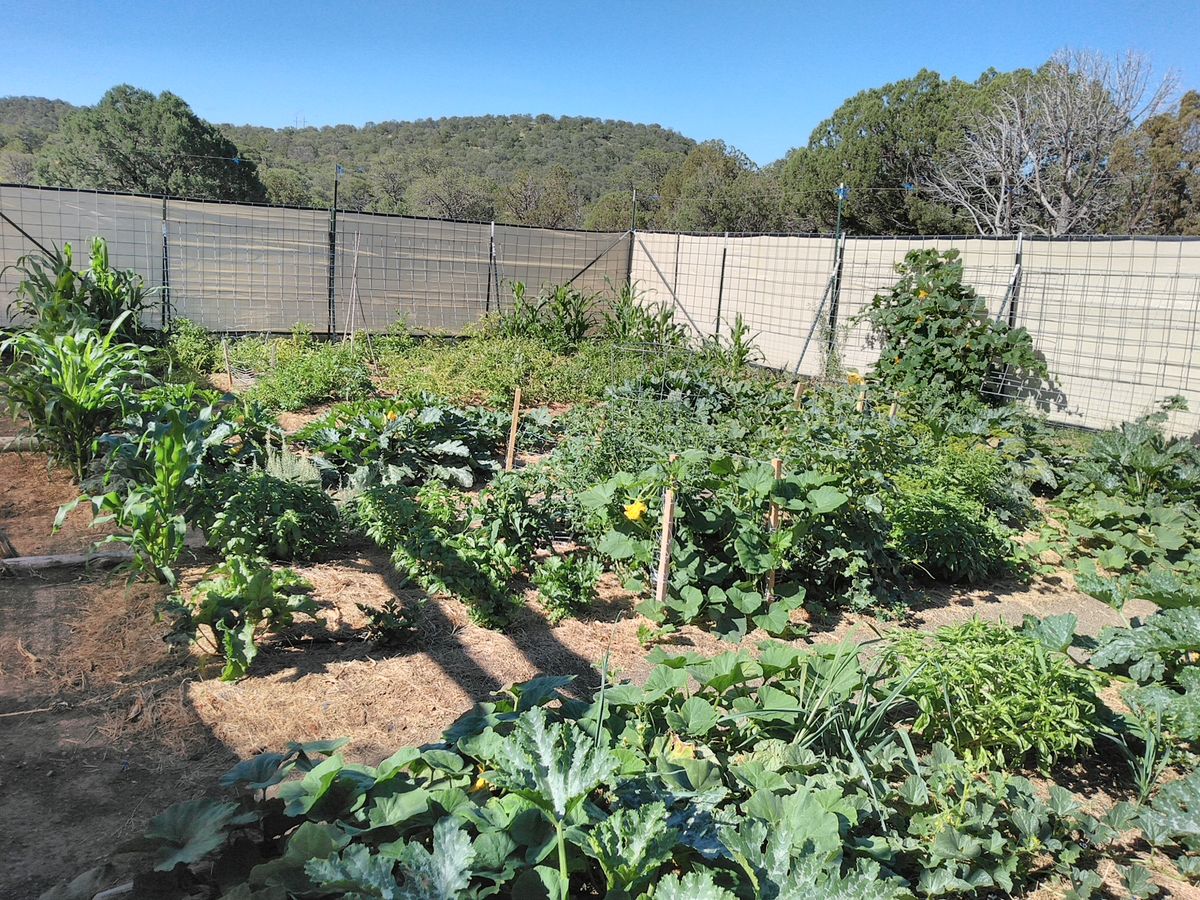

35'x50' deer fenced and terraced garden was built over a massive hügelkultur bed 5' deep. lower pond soil mixed with 80 yards of aged horse and/or cow manures. each 6'x35 terraced bed has 3 full drip lines installed. First 2 years of garden were amazingly productive. 2024 and 2025 years garden has laid fallow due to being abroad.

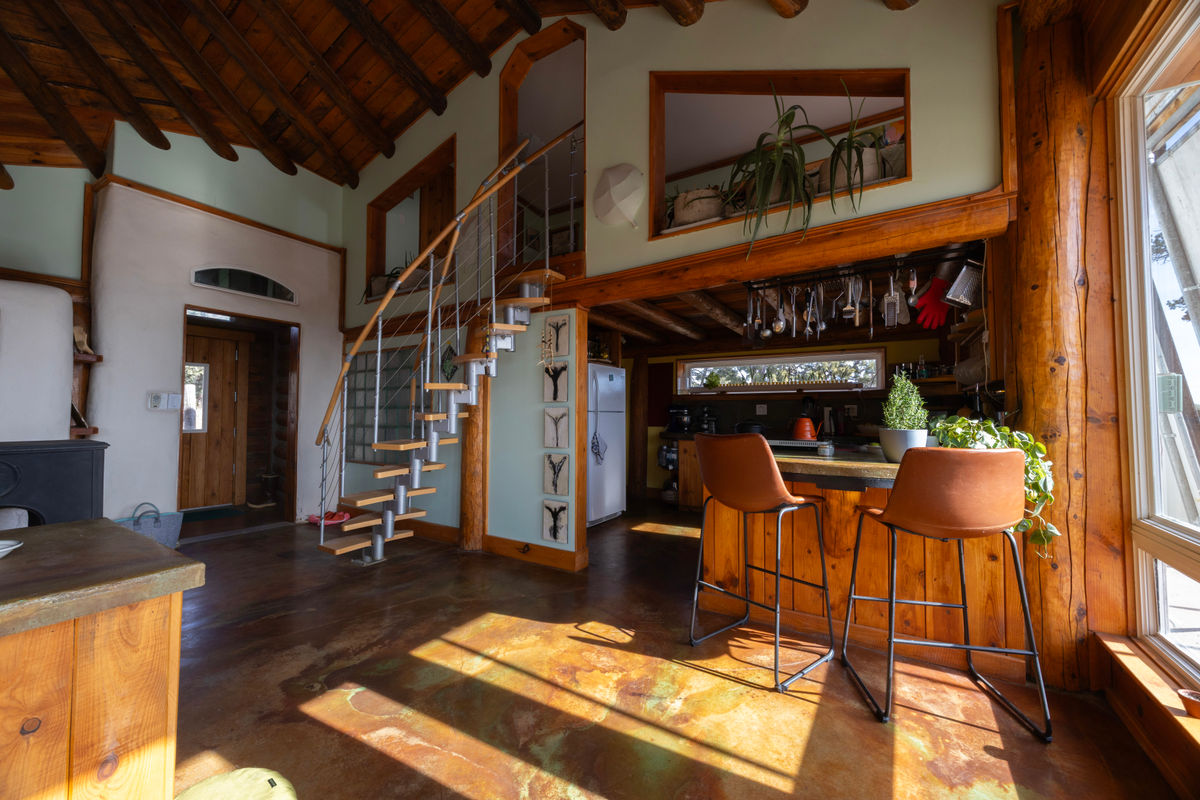

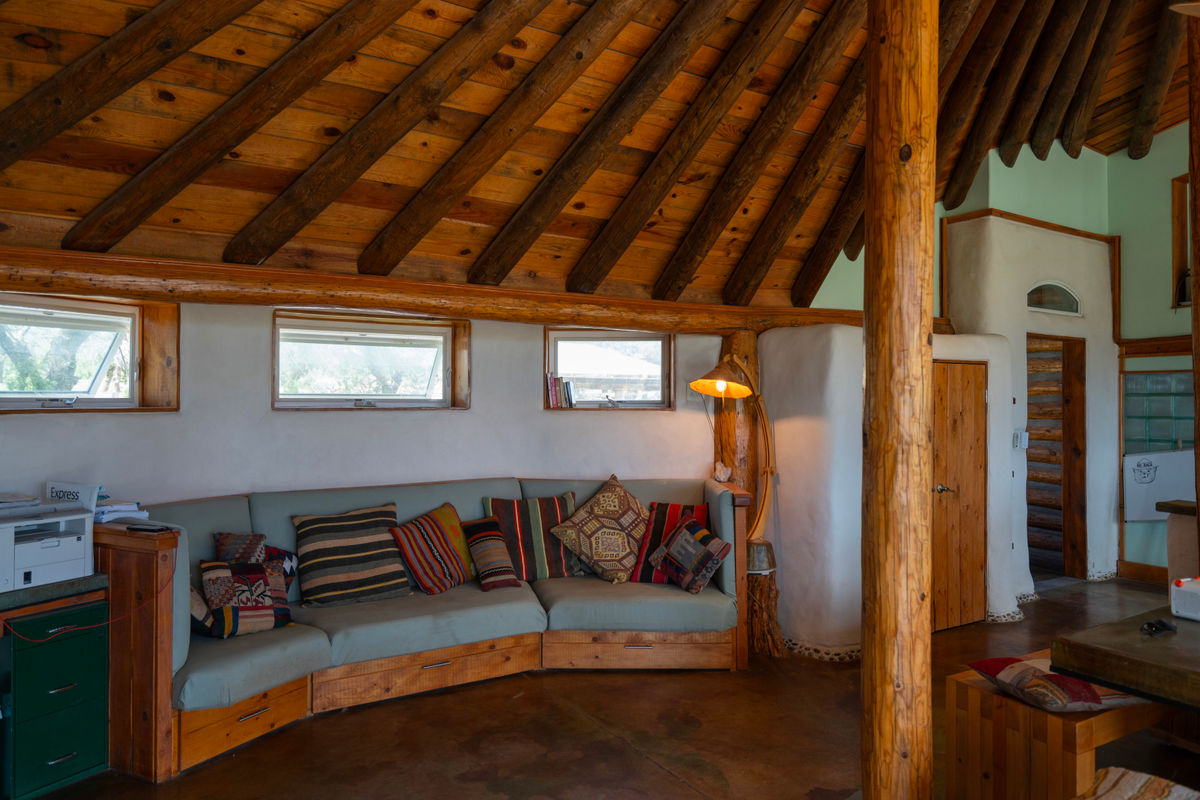

Where was this used? Interior walls of home are 4-6" adobe with earthen plaster and clay finish.

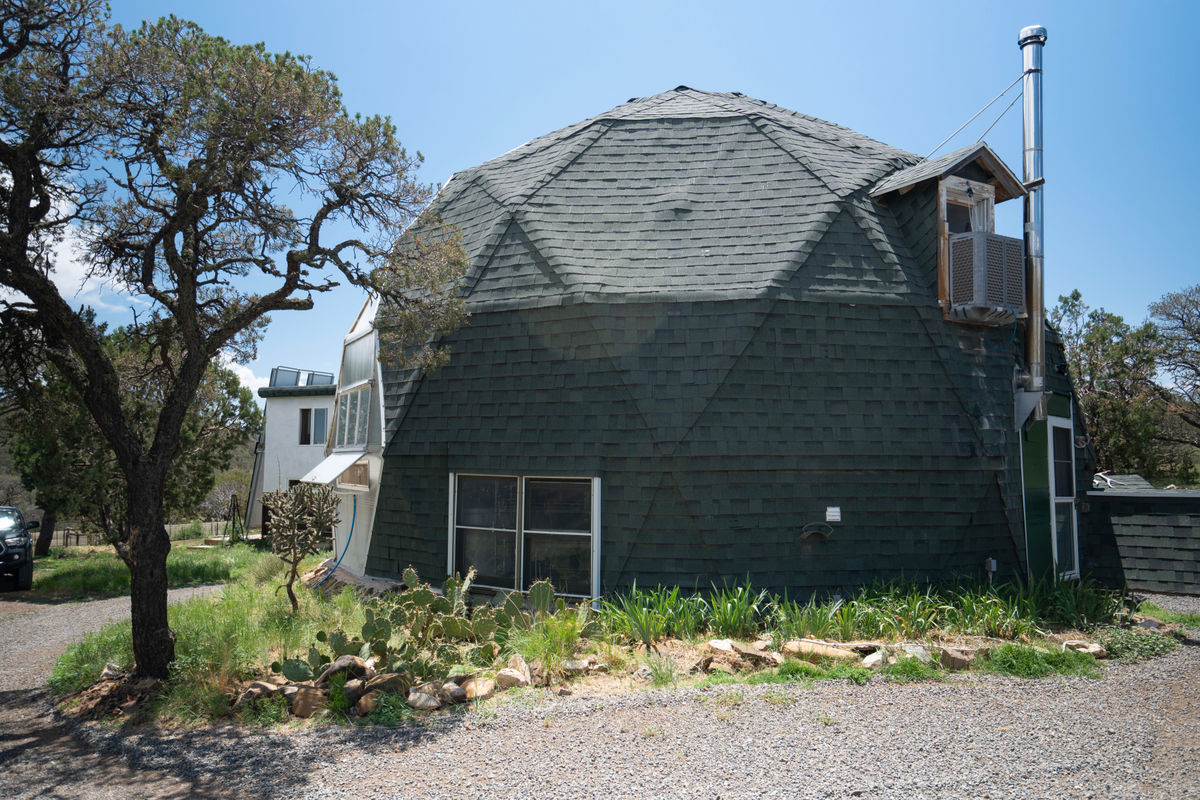

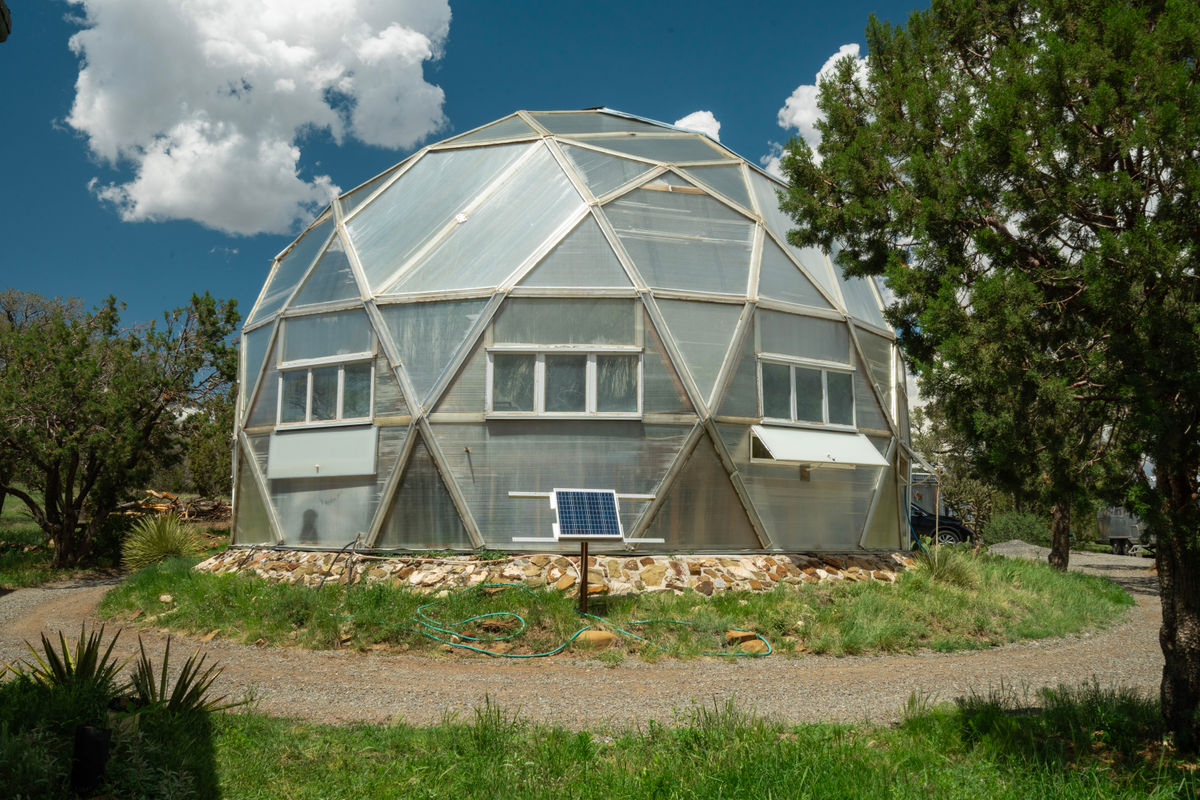

Where was this used? The geodesic dome was found unused in Colorado. Had been previously used for truck gardening to farmers market. Disassembled and rebuilt here. It had been designed and built by the young engineers who had created dome systems for year round food production in the high mountain environments. Many stories attend this endeavor.

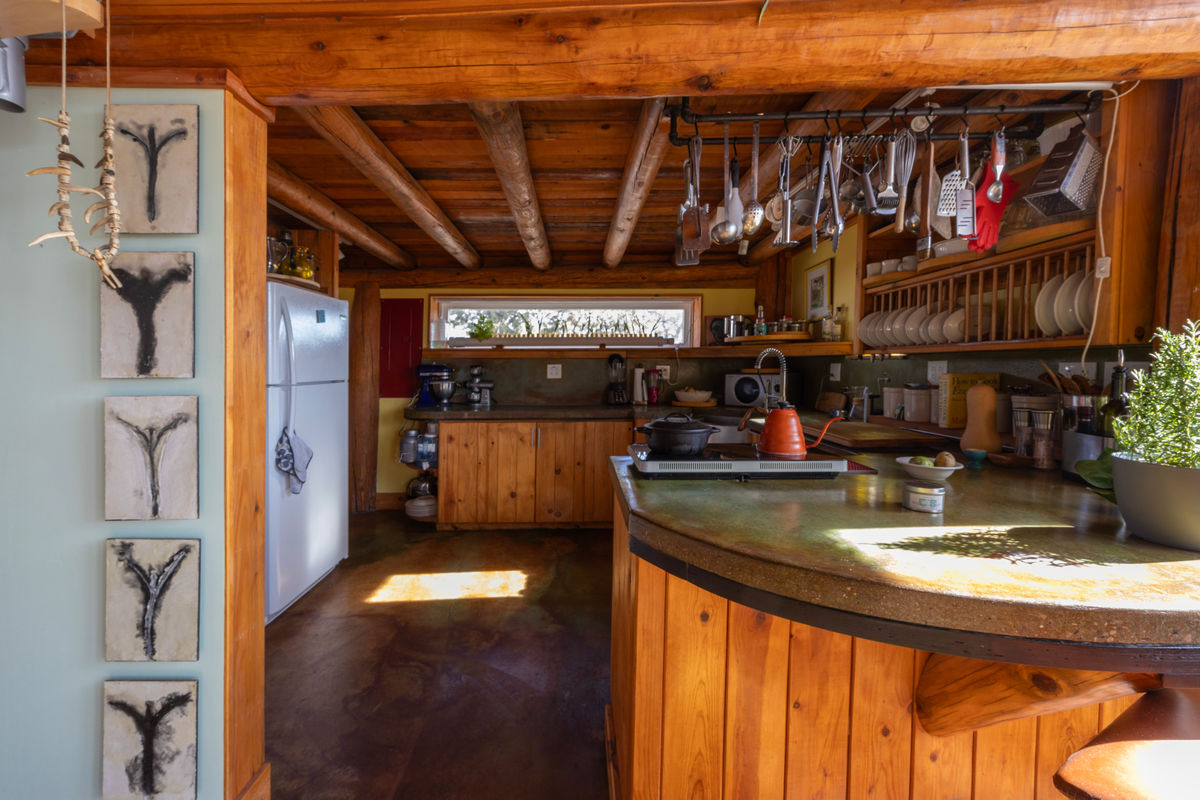

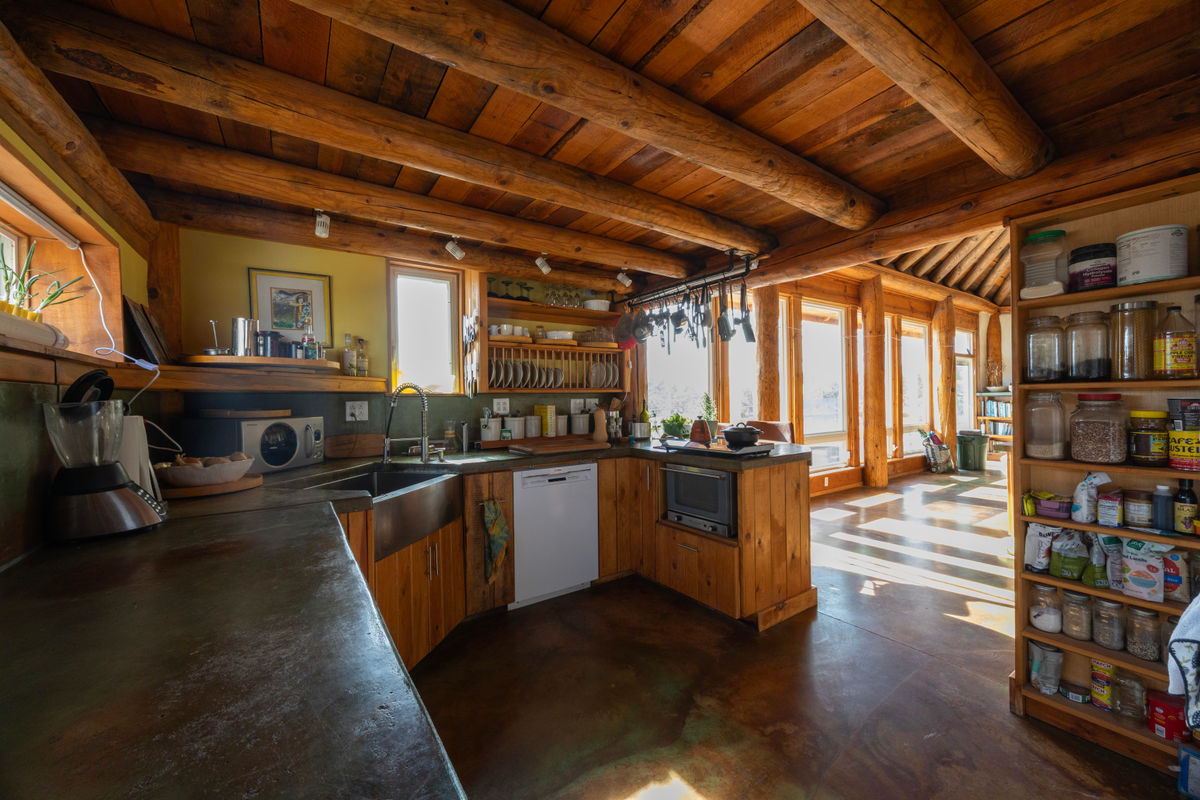

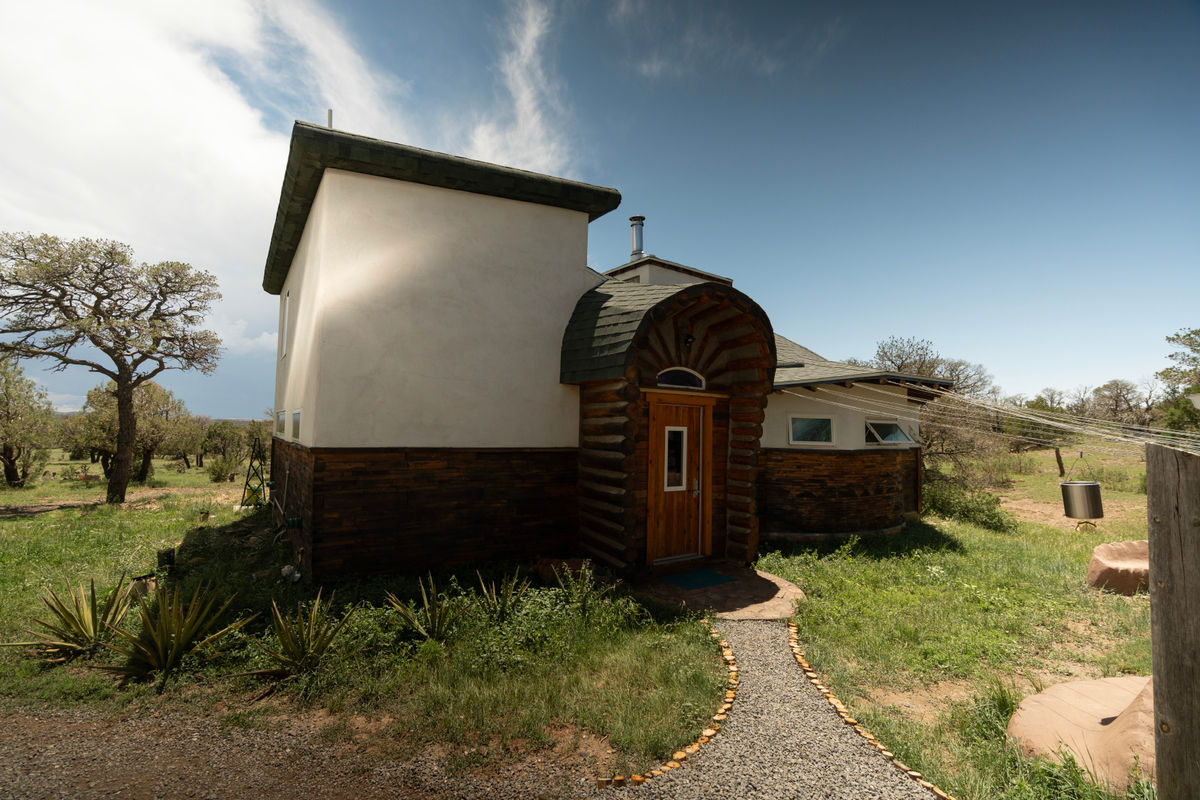

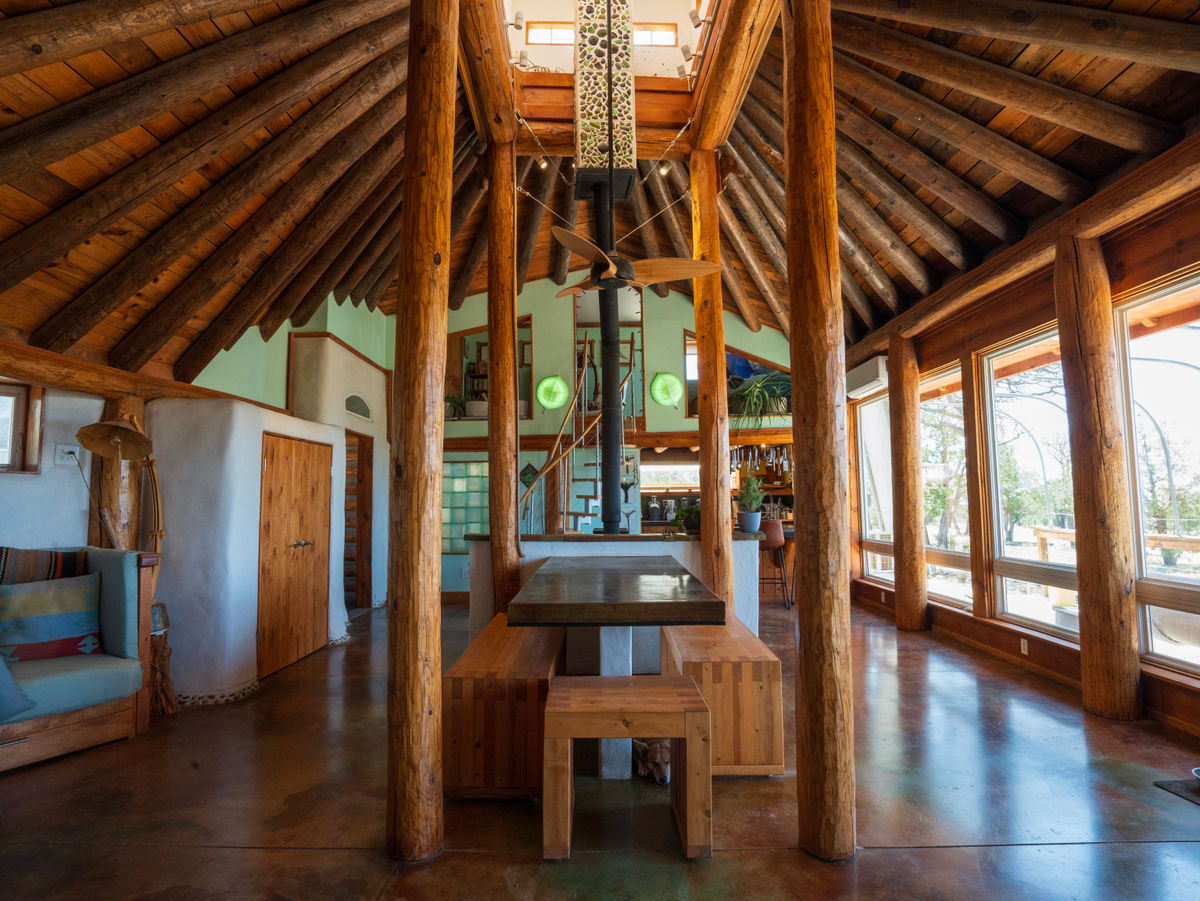

Where was this used? Massive log framed home, super insulated with adobe and non cfc foams. Exterior using mill construction with local sawmill waste. All construction including cabinetry of solid wood
Output: 11kw
Year installed: 2022

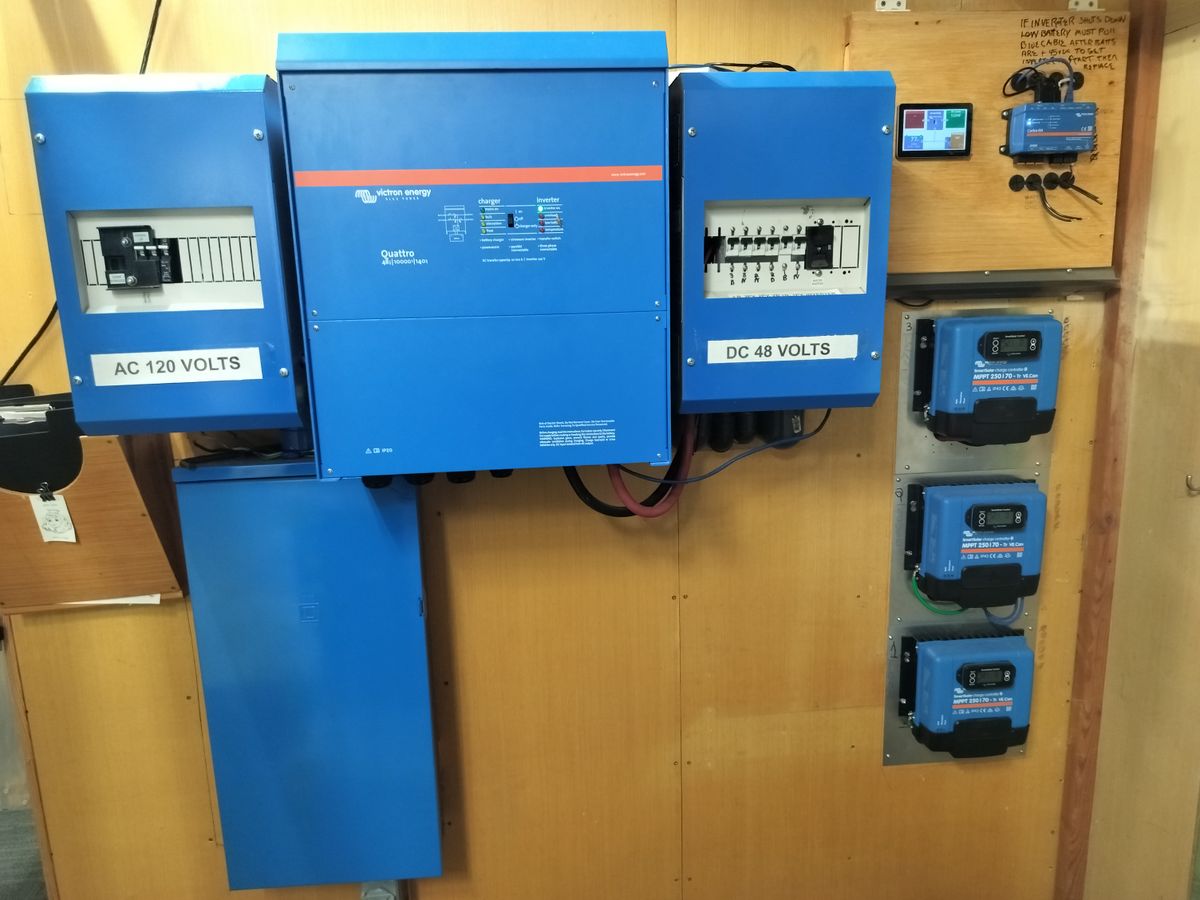

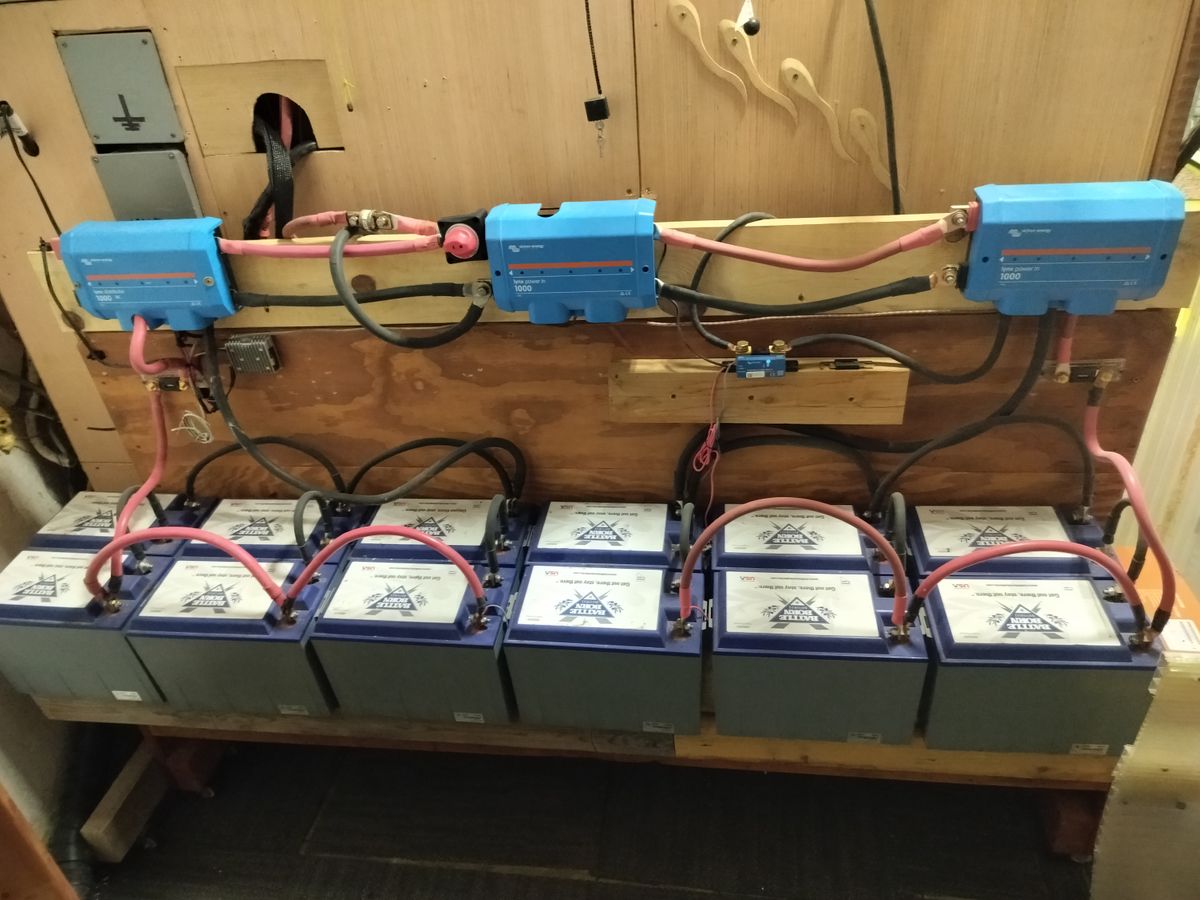

PV arrays include 2 each 12 panel Sunpower 250s, one 12 panel Sunpower 327s. one 6 panel Trina 250s at well to Grundfos SQ11 solar pump with controller. ( Pump now $3k, controler $500 and array $600 So high quality) Main system all new Victron MPPT and 10 kw 120 vac inverter 12 each Battle Born 24 volt Lifpo4 batts cable to modern 48 volt system. System may be added to if wished for 240 vac and or vehicle charging.
Year installed: 2025
Seer Rating: 22

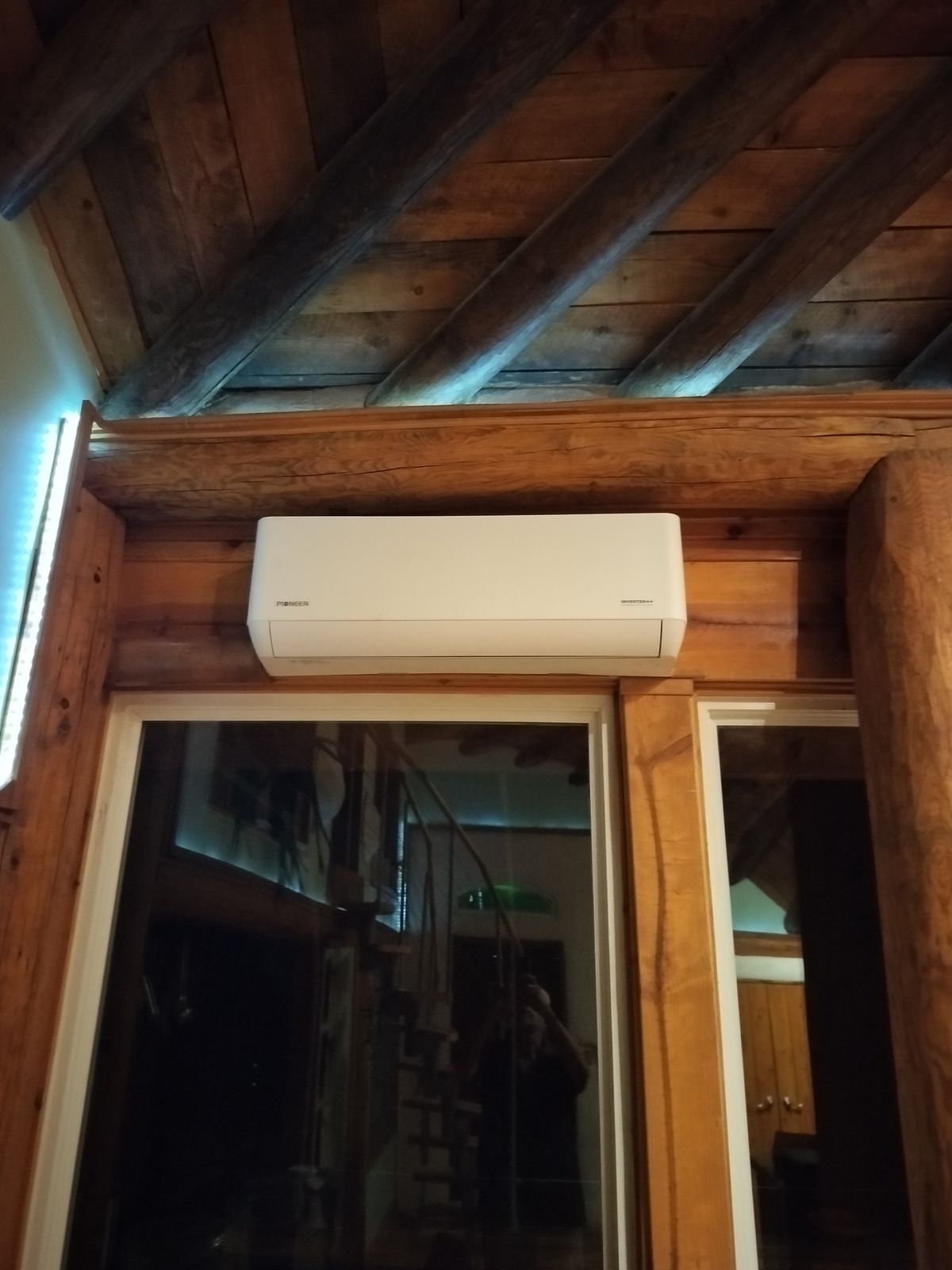

WYT-22Inverter series, low ambient, 12000 btu
Glazing: Dual-Paned Windows
Air Sealed: No

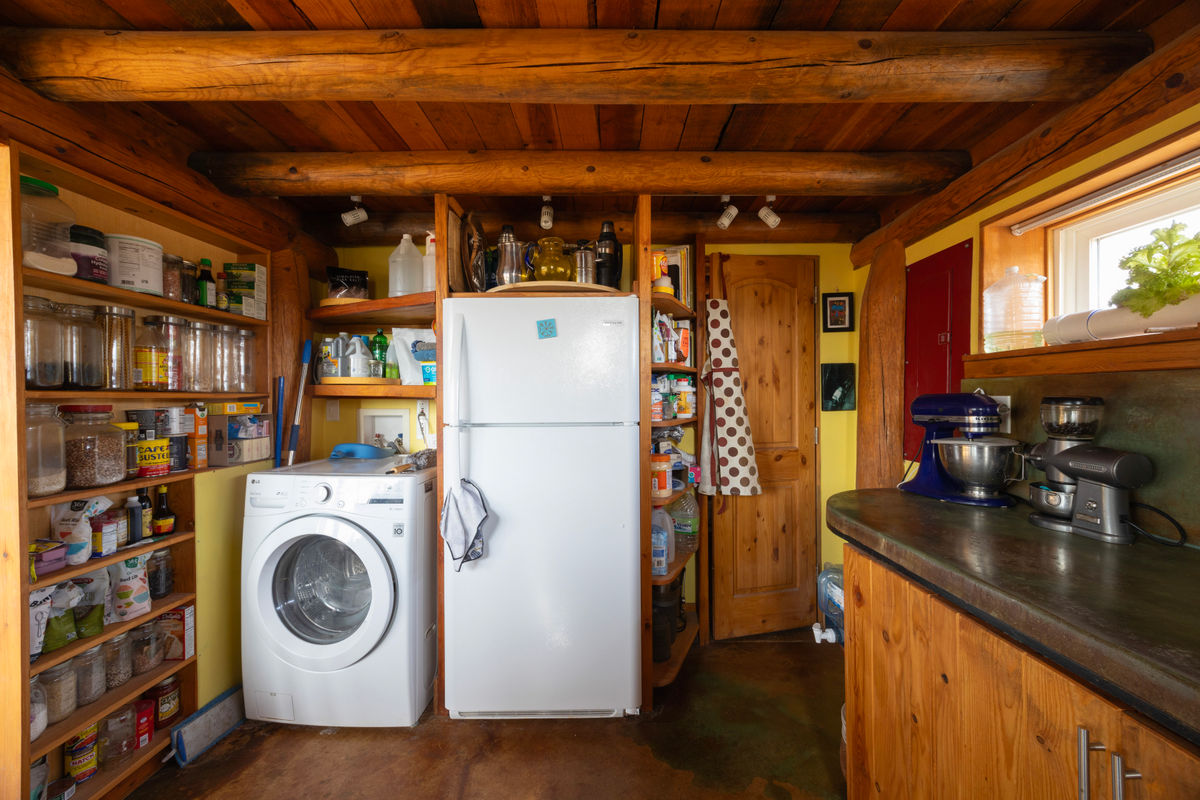

Energy-Star Appliances: Clothes Washing Machine, Dishwasher
Tankless Water Heater Installed: No
Water Purity: yes
Air Purity: no
Radon Test Date: ,
Wall Finishes: Clay Paint
Wood | 0 |
Electricity | 0 |
Listing ID : 25636
